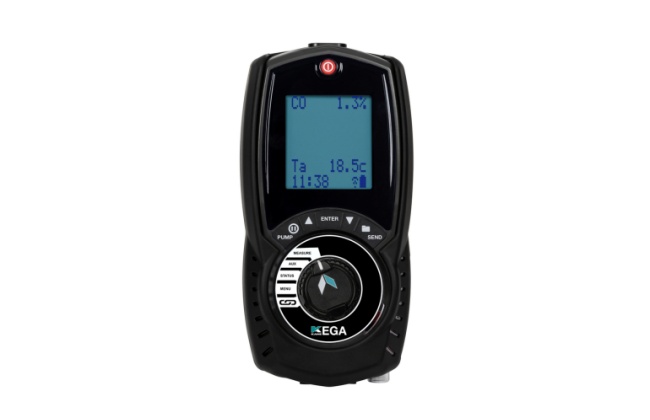

British Kane KANE-CEA2 Gas Analyzer

Combustion Efficiency Analyzer with CO Detection

• Adds to the KANE-CEA:

• Measures CO up to 10,000 ppm with H2 compensation

• Eliminates the risk of poisoning from CO compensation and over-range protection

• Tests for equipment exhaust leaks

KANE-CEA2

KANE-CEA2

Made in the UK

WLEM-Q

Optional wireless module

SM50056

Measurements

• Flue gas temperature range: 0-600°C

• CO2 concentration range: 0-20%°C

Calculations

• O2 content, combustion efficiency, and excess air ratio

• Measures CO up to 10,000 ppm with H2 compensation

• Net temperature

and over-range protection

• CO/CO2 ratio

Preset fuel types

• Natural gas, LPG, and biogas

• Propane and butane

• Light and heavy fuel oil

• Coke, coal, and wood pellets

Features

• Repaired and recertified by KANE for 10 years

• Equipped with a large-capacity water trap and particle filter

• Long-life CO2 NDIR sensor

• Long-life, high-range CO2 sensor with overrange protection

• Large display and unique rotary dial

• Portable analyzer in a rugged design, powered by a large battery

• Supports real-time measurement and calculations

• Work lighting

• Optional
