Thanks to the EX protection approval for a hydrogen atmosphere, you not only get a long-lasting but also a future-proof product from Schütz GmbH Messtechnik.

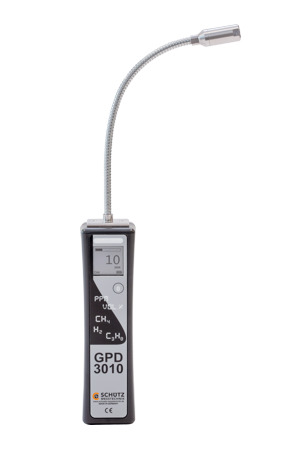

The Gaspen GPD 3010 offers:

H2-Ready
EX protection IIC T4High-resolution graphic display
Adjustable display (normal or inverted)
Ergonomic housing
Robust and compact design
Simple one-button operation
Various gas types can be measured, R234YF, R134A, R32, propane, methane, hydrogen, butane, ethane
Suitable for checking CNG and LPG fueled vehicles
Checking the air conditioning on vehicles
Long operating time (up to 18 hours)
Ex protection class for hydrogen atmosphere
Flammable gases and refrigerants can be measured without changing the sensor

Technical data

Display	Graphic LCD display, illuminated
Alarm	acoustic, optical
Indication	Bar graph and digital display
Gas type	Hydrogen, Methane, Propane, Butane, Ethane, R234Y, R134A, R32
Measuring range	0 ppm - ~50% LEL*
Temperature range	-20 °C – +50 °C
Type of protection	II 2G Ex ib IIC T4 or II 2G Ex db ib IIC T4 suitable für Zone 1 und 2
Test number	SEV 21 ATEX 0555
Degree of protection	IP 54
Power supply	2x Mignon 1.5V battery or 2x NiMH rechargeable battery
Operating time	with batteries up to 16 hours with rechargeable batteries up to 18 hours
Dimensions	160 x 41 x 29 mm mm
Swan neck	180 mm
Weigth	180 g
