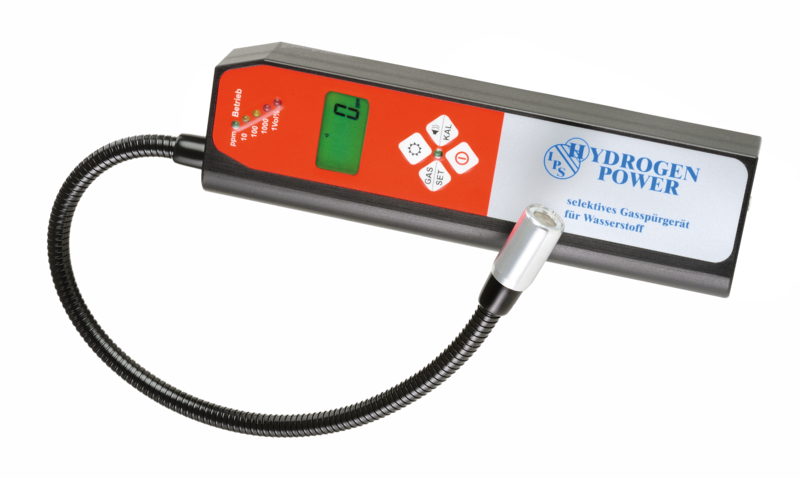

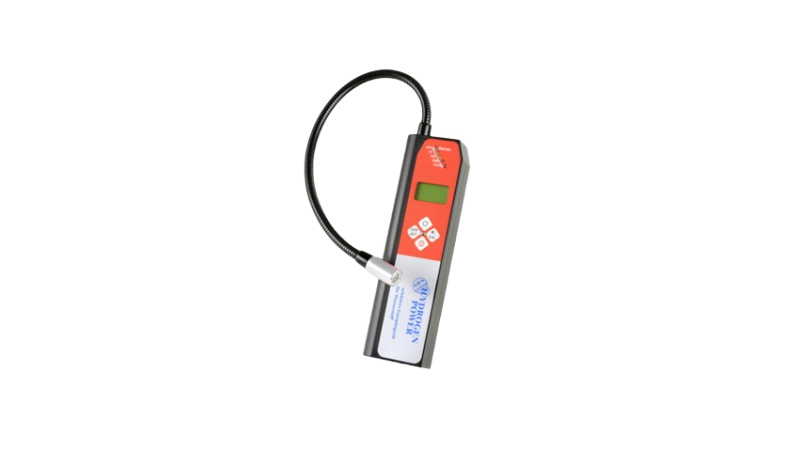

Handheld gas leak detector for the selective detection of hydrogen (H2)
Specific metal-oxide(MOX)-semiconductor gas sensor element (GGS1000 and GGS6000 series)
Flex arm between device and sensor head (length 300mm/ standard)
Display of the detected H2 concentration value from the lower ppm-range up to the LEL 4Vol% H2 (LEL... Lower Explosive Limit)
Automatic switching of detection range
Additional linear, cumulative display of the level of the detected concentration values up to 10000ppm / 1Vol% by bar graph (20 steps/ segments, from left to right) on LCD
Display of reached or exceeded concentration threshold values (≥10ppm, ≥100ppm, ≥1000ppm and ≥1Vol%) by LED
Concentration-dependent increasing intermittent acoustic signal tone (can be switched off); continuous tone ≥ LEL 4Vol% H2 (cannot be switched off)
Automatic zero setting on air after switch on
Suppression of background concentrations up to 250ppm by SET-key
Automatic sensor check with error recognition
Integrated rechargeable NiMH-Battery-Pack
Robust aluminium handheld case
...
Customized solutions (on request)

Equipment case (without equipment and accessories)
Docking station (support/ charging stand for the handheld gas leak detector HydrogenPower, without plug-in charger, use of the plug-in charger included in delivery of the gas leak detector)
Flex arm between device and sensor head, length ca. 150mm (standard: length ca. 300mm)
Flex arm between device and sensor head, length ca. 500mm (standard: length ca. 300mm)
Sensor head SMH (Small Head) - details see drawing (Datasheet)
