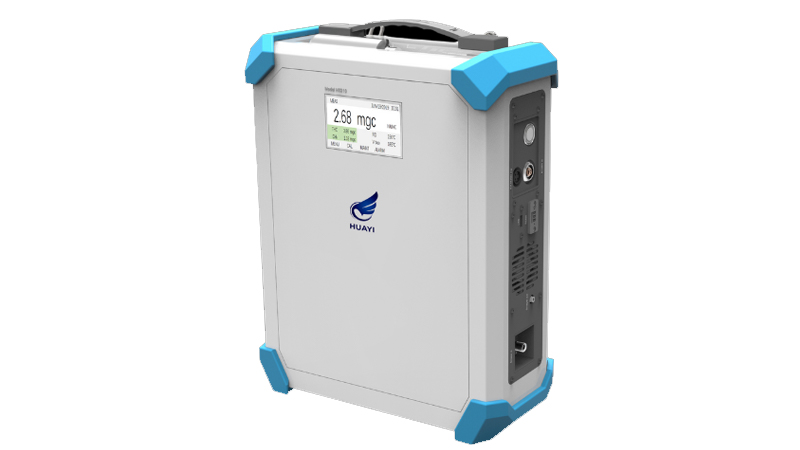

The portable-analyzer H5210 was developed especially for mobile measurement and for always different places to measure. It measures the Total Hydrocarbon THC directly and then switches to another channel to test for the mmethane CH₄with NMHC Cutter.

The model H5210 uses fully sealed and high-temperature heated FID including definitely all parts which come in contact with sample are housed in a 191°C heated oven. This technique prevents the loss of high molecular weight hydrocarbons to ensure true and long standing results and fast response.

Analyzer complies with EN 12619-2013 (EU) and with EPA Method 25A (USA).

Applications

l Stack gas hydrocarbon emissions monitoring

l Monitoring of non-methane total hydrocarbons in stationary pollution sources

l Hydrocarbon contamination monitoring in air and other gases

l Raw exhaust total hydrocarbon vehicle emissions analysis

l Measuring engine combustion efficiency

Features

l Portable, convenient dimensions, light weight

l Fast response time

l Simultaneous monitoring of NMHC and CH₄

l Built-in combustion air

l One-button easy operation

l Automatic Flame ignition

l Adjustable ranges

Applicable standard

l EN 12619-2013 - Stationary source emissions - Determination of the mass concentration of total gaseous organic carbon - Continuous flame ionisation detector method

l EPA Method 25A - Gaseous Organic Concentration - Flame Ionization

Technical Specifications

Method	Heated Flame Ionization Detector (HFID)
Measurement range	0-50000ppm
Detection limit	0.01ppm CH4
Response time (T90)	≤2 s
Repeatability	≤1 %
Warm-up-time	<15 min
Zero drift	＜1 % FS/Month
Span drift	＜1 % FS/24 H
Catalytic converter efficiency	>99.5 %
Ambient temperature and humidity	(-20～45) ℃，≤95 % RH
Power supply	220 VAC/50 Hz
Dimensions (W x H x D)	400 mm×320 mm×135 mm
Weight	8kg
