Kane Auto Plus 4-2 & Auto Plus 5-2 Emission Analysers

No longer available replacement here.

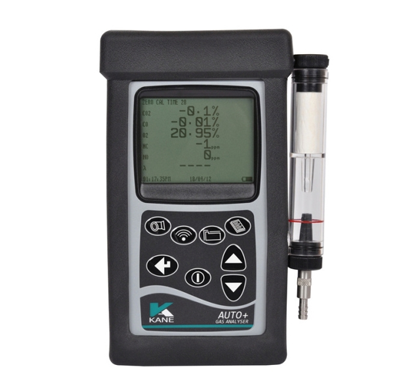

The Kane AUTOplus 5-2 Exhaust Gas Analyser measures five gases: Carbon Monoxide, Carbon Dioxide, Hydrocarbons, Oxygen, NOx and Lambda. Portable and lightweight, the handset can be held with one hand, and improved battery life provides four hours of operation. Designed for emission diagnostics, tuning, pre-compliance testing and servicing. Suitable for use on Petrol/Gasoline, LPG, CNG and Diesel vehicles. Warm time is less than two minutes.

Supplied with multilingual software. The unit has a Monochrome QVGA Display; all parameters can be viewed simultaneously in real time, detailed on separate lines. Data logging is included, and up to 500 tests can be stored. The mini USB port can be used for data transfer. Bluetooth connectivity facilitates wireless transmission to a PC or mobile device using Kane Live Software or the Kane Wireless Printer App. Readings can be sent by infrared to the IRP-2 printer (optional extra). The pump speed can be adjusted to preserve battery life.

Ranges

• CO 0-10%
• CO2 0-16%
• HC 0-5000ppm
• O2 0-21%
• NOX 0-5000ppm
• Lambda 0.8-1.2
• Size 22 x 5.5  x 12 cm. Probe length 350mm x Diameter 15mm, 4m long hose

Kane Live software allows readings to be shown graphically and in real-time, helping identify emission-related faults. The user can devise graphs, download and save data, and even toggle the pump on and off.

The kit is supplied with an Auto Plus 5-2 Analyser, complete with a water trap, protective rubber boot, high-temperature exhaust Probe, AC and 12V chargers, spare filters, manual, carry case, IR communication (compatible printer extra), Bluetooth connectivity, and Kane May calibration report.

Consumables available: Filters PF400/5 pack of five
