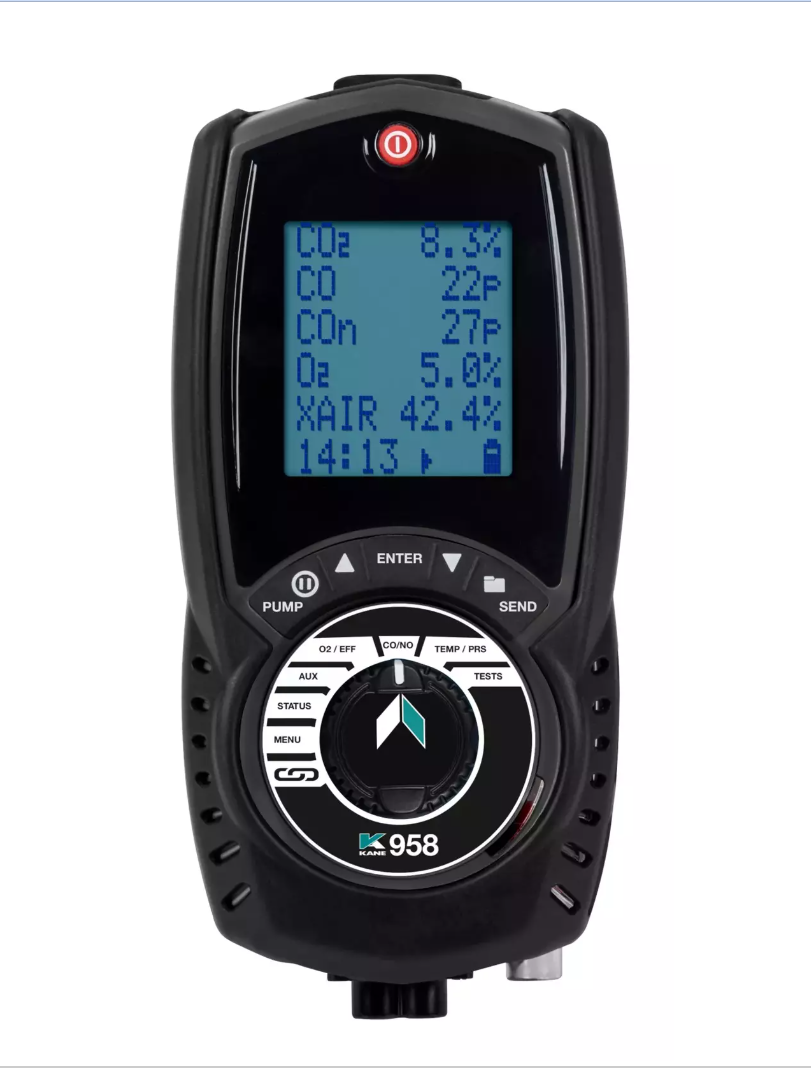

KANE958 Commercial Analyser
Description
Reviews
Applications
- Commercial, industrial & marine boilers up to 5MW / 50 bar stack draught
- Combustion performance & efficiency
- Structured let by, tightness & flue draught tests
- Boiler & Heat pump temperature flow & return
- IAQ - Room CO migration, temperature, RH & airflow
Measures
- O2 0-21% ppm
- CO 0-10,000ppm H2compensated with over range protection - 100,000ppm / 10% option
- Option to measure 2 extra gases: NO to 5000ppm, NO2 to 1,000ppm & SO2 to 5,000ppm
- Differential temperature -20 to +135°C
- Differential pressure +/- 160mbar
Sensor options - up to 2
- NO 0-5,000ppm
- NO2 0-1,000ppm**
- SO2 0-5,000ppm**
- CO 0-10% replaces standard CO sensor*
Probe & accessory options
- CHSP5 285mm high temperature PTFE lined smoke probe with removeable shaft & 4m neoprene hose
- CHSLP5 1m high temperature PTFE lined smoke probe with removeable shaft & 4m neoprene hose
- KMCE10 10m hose & thermocouple extension
- KANE-GCU** Gas conditioning unit
- KANE-IRP3 Printer
KANE LINK options
- KANE-WPCP2 Wireless LINK temp clamp probes - connect as a pair
- KANE-DTHA2 Wireless LINK airflow, temp & RH
- KANE79 Wireless LINK CO monitor to 999ppm - connect up to 4
Calculates
- CO2
- CO/CO2 ratio
- NOx (option)
- Excess air
- Combustion efficiency
Fuel Types
10 standard fuels including: - Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil & user fuels
Box Contents
- Analyser
- Probe
- USB charger
- Quick reference guide & analyser calibration certificate
