Measured parameters: Fat, Protein, Total Solids, SNF, Density, Added Water
Time of measurement: 3 minutes
Types of milk: whole cow milk only
Milk sample preparation: milk has to be warm
Cleaning: manual
Connection to PC: Yes, connection to PC through a Com-port (null-modem cable /RS 232 cable and software for Windows are supplied in the set of the analyzer)
Connection to a portable printer: Yes (portable receipt printer MPrint G58 can be ordered additionally)
Additional features: the option of operation from the 12 V car battery at the customer’s special order

Description

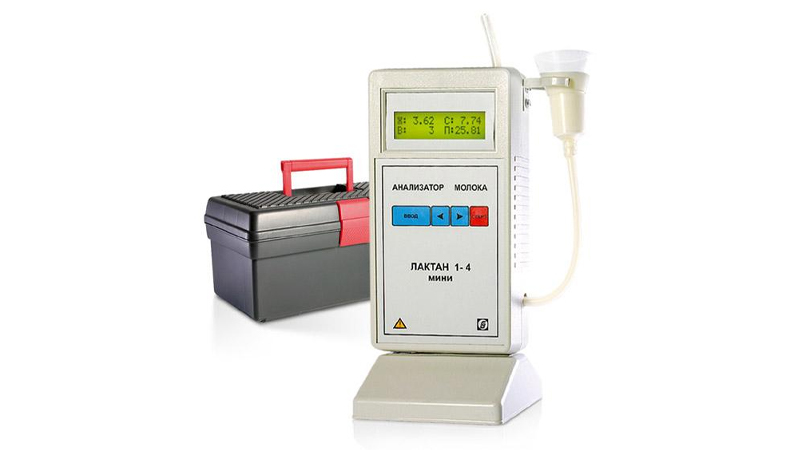

Laktan Mini is a portable, compact, fast operating milk analyzer with a self-contained power supply (can work from a car battery), easy-to-read display.

This model is suitable for use in farms, as well as ideal for receiving milk from private farms.

The analyzer’s power supply with a wide range of AC voltage 100 - 260V ensures stable operation of the analyzer in the most extreme conditions in the field where there are significant voltage fluctuations in the network. Laktan Mini is a very compact and portable device and can work with the 12V car battery which allows using it in field conditions

Laktan Mini Ultrasonic Milk Quality Analyzer is used to determine 6 measuring paramteres: the percentage of Fat, Solids-Non-Fat (SNF), Total Solids, Protein, Density and Added Water.

The average measurement time is not more than 3 minutes (180 sec) that is 2 times less as compared to the traditional analysis method. The accuracy of determining of the meas. parameters at the same time fully conforms to the requirements of the standard methods.

Laktan Mini is a reasonably priced portable laboratory for milk quality control which will make your work easier and will help reduce the cost of analysis and save your time and money.

Calibration

Laktan Mini is supplied with the factory calibration for whole cow milk.

Please note! If you need to work with other types of milk (pasteurized, sterilized, skim milk, cream, etc.) you should select another milk analyzer model (for example, Laktan 220, Laktan 230, Laktan 600 ULTRA).

Working mode

Setting of the working mode of the analyzer takes not more than 10 minutes. The analyzer will warm up automatically after switching on. After warming is completed the message “Ready for work” appears on the analyzer’s display, after that you can enjoy the analyzer's work all day long.

Voltage

In this analyzer a special attention is paid to the power supply characteristics. A wide range of AC voltage from 100 to 260 V allows to work without any alterations in the villages, where there are significant fluctuations in the electricity networks. Power consumption is not more than 40W. The option of operation from the 12 V car battery allows using it effectively during milk reception from the private farms.

Dimensions

Small size of the analyzer and its dimensions (150 x 110 x 240 mm) in combination with the small weight (not more than 0,7 kg) make our analyzer portable/ mobile and allow using it in field conditions.
Special plastic case for carrying the milk analyzer provides safety and convenience in transportation.

Service and support

Warranty: 1 year full warranty

If necessary our service centers will provide free warranty repairs and post-warranty service. The repair is carried out at a high technical level and in the shortest possible time.

Technical description

Measured parameter of milk

Name of Characteristic	Fat, %		Total solids,%	SNF, %	Protein, %	Density, kg/m3	Added water,%
1.Measurement range	0 - 10		7 - 20	6 - 12	1,5 - 3,5	1000 -1040	0 - 100
	0 - 5	5 - 10

2. Allowed limits of the systematic component of the absolute error, %	±0,05	±0,1	±0,4	±0,2	±0,1	±0,3	±1
3. Allowed limits of the random component of the absolute error, %	±0,02	±0,03	±0,09	±0,03	±0,03	±0,2	±0,3
