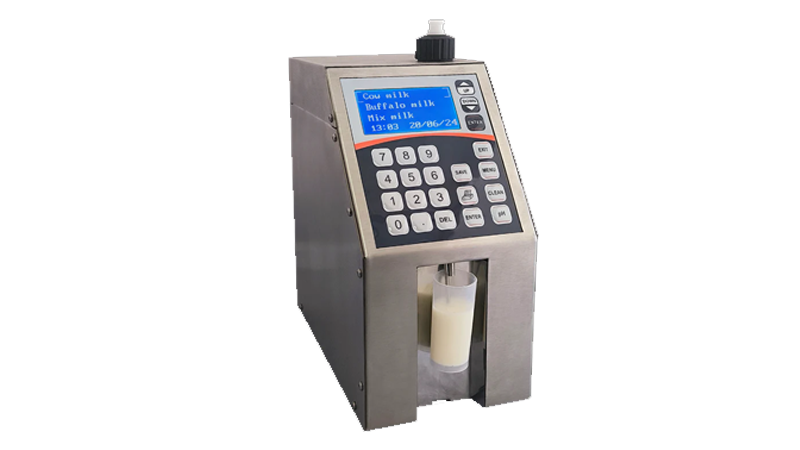

Master LM3 is convenient and reliable milk analyzer with sophisticated long life sensor and better precision, built-in data input keypad (liters and customer number).

Milk analyzers from Master LM3 series are high quality instruments. Accurate analysis of the milk parameters is performed for 60 sec/40sec/30 sec. Master LM3 can be equipped with second peristaltic pump for automatic cleaning.

Available options (by customers’ request only) – conductivity, built-in printer, USB flash memory stick, second peristaltic pump for automatic cleaning, PH, accumulator, weighting scales, remote display.

Technical Overview
Sample Volume	20 ml.
Sample Speed	60/40/30sec.
Sample Temperature	1˚ C – ˚42 C
Humidity	0 – 80℅ RH
Interface	RS 232 Port
Interface	USB
AC Power Supply	95 – 250 V
DC Power Supply	12 V
Dimensions	112/224/222mm
Weight	2.5kg.

More Info

Ultrasonic Technology
Very small quantity of milk needed
Memory for 50 measurements
pH (option)
Built-in keypad

Self calibration without computer
Low power consumption
1 x RS232 connection
1 x USB connection to PC)
ESC POS Printer Support

Large graphic display
Peristaltic pump
One year full waranty
Clock (time and date)
No acids or other chemicals are used

Measuring Ranges
Fat	0℅ -35℅	±0.08℅
Solids-Non-Fat (SNF)	3℅ - 40℅	±0.15℅
Density	1000 – 1160 kg/m3	±0.3kg/m3
Protein	2℅ - 15℅	±0.15℅
Lactose	0.01℅ - 20℅	±0.2℅
Salts	0.4℅ - 1.5℅	±0.05℅
Add Water	0℅ - 70℅	±3℅
Freezing Point	-0.4˚C to -0.7˚C	±0.005˚C
Sample Temperature	5˚C-40˚C	±1˚C
*Conductivity	2 – 14mS/cm	±0.1mS/cm
*pH	0 - 14	±0.05
