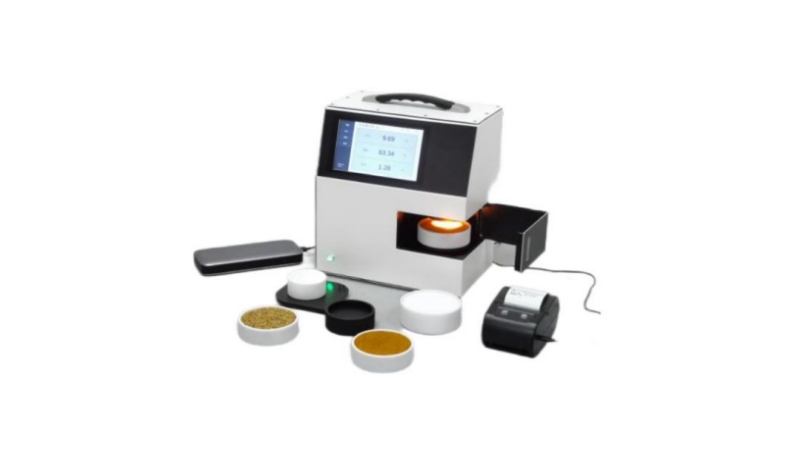

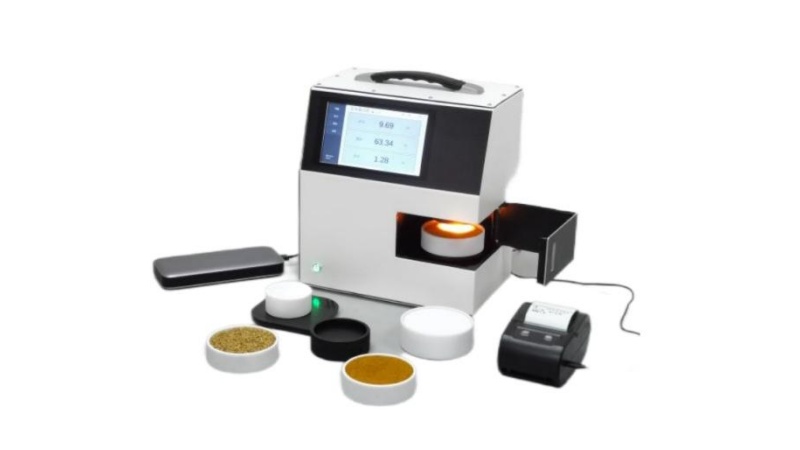

Near infrared spectroscope DA60

User-friendly operation: Non-contact analysis, no sample pretreatment required.

Test items: Moisture, protein, fat, fiber, ash, starch, amylose, fatty acid composition, and various amino acids in various samples.

Sample form: Suitable for various sample forms including granules, powders, liquids, and pastes.

Fast analysis: Analysis time is adjustable, with conventional analysis time under 6 seconds.

Comprehensive Database: The model database is rich and complete, providing nearly a thousand representative databases for different products, ready to use immediately for convenience and speed.

Excellent compatibility: The instrument is compatible with databases of diode array spectroscopy technology from various brands, and the curves can be seamlessly transferred across different DA60instruments.

Compact design: fully fixed optical system with built-in computer system.

Multi-functional: The instrument can be operated in any laboratory environment, transmitting data in real-time to a computer. Additionally, it can be connected to an external power bank for outdoor use, facilitating on-site testing.

Operating Principle: Near-infrared diffuse reflection technology, open non-contact detection,with light source directly illuminating the sample from top to bottom and performing rotational

scanning. Suitable for particulate and heterogeneous sample detection.

Spectrometer: The core spectrometer of the instrument possesses fully independent intellectual

property rights, exhibits excellent stability, and features automatic baseline calibration with

automatic compensation for environmental effects.

Stability: The newly designed optical system specifically engineered for harsh environments,

combined with shock-resistant solid-state drives (SSDs), ensures enhanced stability for use in

dusty, vibrating, or other challenging conditions.

Spot area: The spot diameter is 40 mm. The rotating scanning method increases the detection area,

making it more suitable for detecting non-uniform samples.

Software: An independently developed software with proprietary intellectual property rights,

capable of standalone operation or integration with networked systems for centralized

management.

Communication: The device features a standard Ethernet port and USB port, supporting WiFi and

cellular connectivity. It provides remote technical support and is compatible with all Windows

peripheral devices, including printers and barcode scanners.

GPS: Built-in GPS positioning feature.

The DA60 near infrared analyzer can analyze all kinds of samples, such as whole grains,

powders, liquids and pastes.

Crop raw grain database

Measurable products: wheat, soybean, corn, rice, barley, rapeseed, sugar beet, rye, black

wheat, sorghum, millet, sunflower, cottonseed, peanut, sesame, cassava, flaxseed, alfalfa, etc.

Measurable components: moisture, protein, wet gluten, sediment value, fat, fiber, ash, starch,

oleic acid, linoleic acid, lysine, and 18 other amino acids, fatty acids, lignin, cellulose, etc.

Breeding analysis

A dedicated breeding analysis device and a mature crop raw material database enable

non-destructive analysis of single-seed components.

Corn and its deep processing products

Measurable products: whole corn kernels, corn protein powder, corn bran powder, corn starch,

concentrated gluten liquid, corn germ, corn germ meal, extruded fiber, extruded germ, scraped

starch, plate and frame filter cake, soaked corn, etc. Measurable components: moisture,

protein, fat, ash, dry matter, dry basis protein, starch, linked starch, etc.

Oil crops and their deep processing products

Measurable products: soybeans, soybean meal, expanded soybean powder, bean curd skin,

peanuts, peanut meal, peanut cake, rapeseed, rapeseed meal, rice bran, rice bran meal,

cottonseed, cottonseed meal, cottonseed protein, etc. Measurable components: moisture,

protein, oil content, fiber, ash, soluble protein, etc.

Feed and its raw materials

Feed products: Egg chicken feed, peak chicken feed, chicken concentrate, duck feed, cattle

feed, dairy cow feed, pig feed, piglet feed, fish feed, compound feed, etc. Feed raw materials:

various meal types, cakes, as well as bran, substandard flour, etc. Measurable components:

moisture, protein, fiber, calcium, phosphorus, sodium chloride, ash, methionine, lysine, etc.

Food and its deep processing

Measurable products: instant noodles, French fries, noodles, milk powder, soybean milk

powder, syrup, etc. Measurable parameters: moisture, protein, salt content, fat, ash, fructose,

glucose, etc.

Biological fermentation

Measurable products: Fermentation broth, microbial residue, fermented products. Measurable

components: Residual sugar, AN, potency, OD, microbial concentration, precursor

concentration, P, moisture content, protein content, etc.

Chemical and Pharmaceutical

Measurable products: polyester/polyether polyols, resins, spandex, plastic particles, active

pharmaceutical ingredients (APIs), pharmaceutical intermediates, etc. Measurable

components: acid value, hydroxyl value, monoester, diester, solid content, chlorides, etc.

Other industries

tobacco, tea, raw grain procurement, silage corn, fermented grains, etc.
