GM5 H2 Hydrogen tracer method to detect water leakage

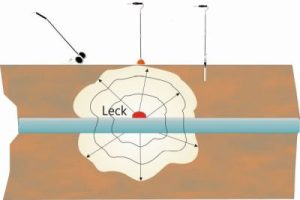

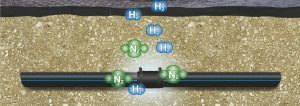

The hydrogen tracer method is to replace or dissolve a mixture of 5% hydrogen and 95% nitrogen, the so-called “tracer gas”, into the pressure test medium (compressed air, water). It is well known that the flammability limit of hydrogen is 5.7%, so a mixture of 5% hydrogen and 95% nitrogen is an absolutely safe gas.

The GM5 Hydrogen Tracer Gas detector from Schusi is a highly sensitive hydrogen leak detector that easily detects the presence of hydrogen (H2). Tracer gas leak location method is a reliable leak location method that has been tested by practice. GM5 hydrogen tracer gas detector is specially designed for hydrogen tracer gas leak detection, which can solve all the problems of pipeline leak location.

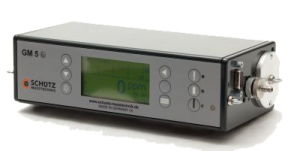

GM5 hydrogen tracer gas detector
Application field:
□ Gas pipe network leakage location detection

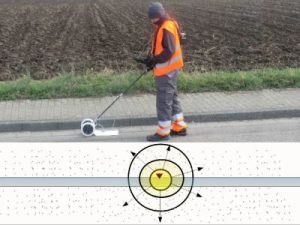

□ Locate and detect leaks in the water supply network
□ Thermal pipe network leakage location detection
□ Detection of leakage points of pressurized communication cables
□ Inflatable high-voltage power cable leak location detection
□ Industrial products (water pipes, pumps, engine cylinders, fuel tanks, etc.) seal inspection

GM5 Hydrogen Tracer Gas detector Features:
Hydrogen tracer gas is non-toxic gas, so GM5 can be applied to almost any pipeline leak location detection, including water pipe network leak location detection;
□ Hydrogen tracer gas is a safe detection gas;
Hydrogen tracer gas leak location method is a classic and reliable pipeline leak location method that has been tested in practice, and can be applied to almost all pipe network leak detection;

GM5 Technical parameters:

□ Calibration gas: hydrogen and hydrogen tracer gas
□ Host size: 215*100*60 mm
□ Host weight: 1.5kg
□ Protection level: IP54
□ Power supply: 3 1.5V non-rechargeable batteries or 3 1.2V rechargeable batteries
□ Operation time: The standard is 15 hours
□ Operating temperature: -20° C – +40° C

Disposition
□ 1 host;
□ Charger;
□ 1 set /3 charger adapters
□ Handheld telescopic probe;
□ Instrument strap;
□ Instrument filter cartridge 1 box /100 pieces
□ Packing suitcases;
□ 1 book of instructions in both English and Chinese:
□ Factory inspection report.

GM5 Hydrogen Tracer Gas detector Optional configuration:

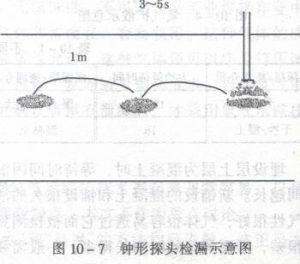

□ Bell-type road probe;
□ Cone type road probe;

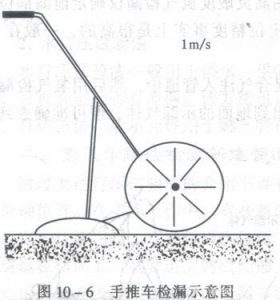

□ Trolley road probe;
□ Water oil filter;
□ Instrument protection housing.
