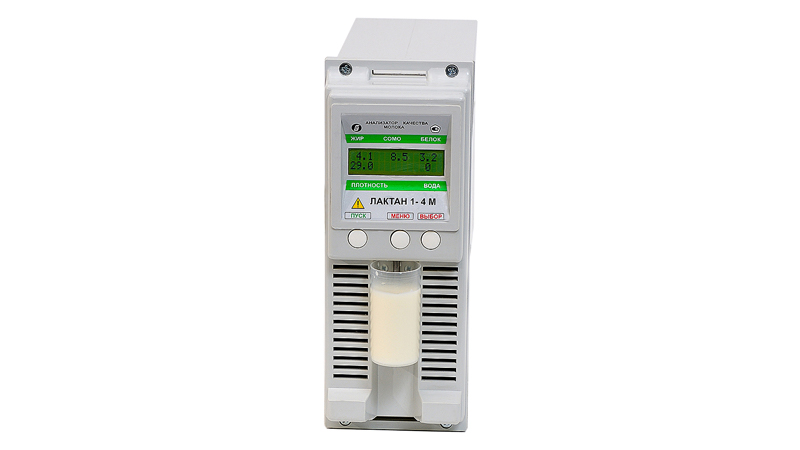

"Laktan 1-4M" model 230 - new advanced model of our milk quality analyzer!!!
Distinctive features: average time of measurement (average analysis time) is 90 seconds! Freezing point determination and new modified cleaning system.

Description

Milk quality analyzer "Laktan 1-4M" model 230 is used to determine the percentage of fat, protein, solids-non-fat (SNF), added water, temperature and density in a sample of fresh whole, preserved, pasteurized, normalized, powder milk, skimmed milk and a long storage milk. What makes it different from model 220

The average time measurement- 90 secon
Freezing point determination
New cleaning system

Maintenance

2 years warranty. The service center would not leave you without attention and will provide warranty repair, if necessary, and post warranty service. The repair is done professionally and in the shortest possible time.

Measurement method

Measurement method is certified by the Russian Scientific Research Dairy Industry Institute. The method instruction manual is supplied together with the device, so you can use it not only for milk quality control, but also for cream and ice-cream analysis.

Certificates

This is one of the most recent devices and it is registered in the State Register. The device is also entered in the State Register of Ukraine, Byelorussia , Estonia, Germany, Lithuania, Bulgaria and Romania.

Working mode

The device should warm up to work in a normal way. It will warm up automatically. When the device is ready for work, there will be a message on the display. Warm up time is about 5 minutes. Just turn it on. After the device has been warmed up, you can enjoy analyzer's work all day long.

Time of measurement

The average time of measurement is 90 seconds

Dimensions

In combination with weight 2 kg, small size 300x240x95mm allows to deliver device all over the world and robust packing guarantees secure transportation

Voltage

In this analyzer a special attention is paid to power supply characteristics. A wide range of AC voltage from 100 to 250 V allows to work without any alterations in the villages, where there are significant fluctuations in the electricity.

CONNECTION TO COMPUTER IN THE SET.

Sibagropribor supplies cable and software for Windows to connect "Laktan 1-4M" model 230 to computer.

Technical description

Measured parameter	Range of measurement	Standard deviation
Fat,%	0 - 9	0,06
Protein, %	1,5 - 3,5	0,10
SNF, %	6 - 12	0,18
Freezing point ,°C	- (0,383 - 0,600)	0,18
Added water, %	1 - 100	1
Density, kg/m3	1000 - 1040	0,20
Temperature, °C	5 - 35	1
