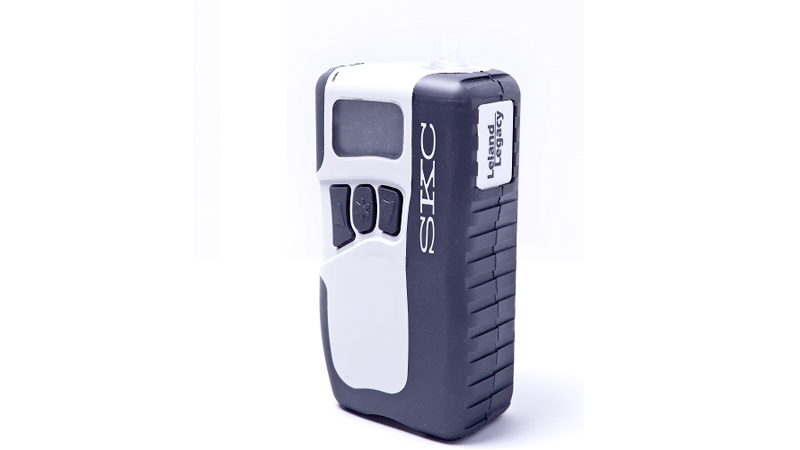

The Leland Legacy is the ultimate in high flow sampling providing the high flow and long run times of a vacuum-style pump in a compact, portable and battery-operated sampler.

Ideal for 24 hour indoor air monitoring or unattended ambient air sampling
Provides high flows and long run times
Low operational noise
Advanced compensated flow control
Programmable run times using the large keypad or optional DataTrac PC software
Rubberised case provides grip and protection
Pump running indicator LED
Automatic calibration using CalChek and High Flow chek-mate
Records pump history, downloadable using optional DataTrac PC software

Applications

Sioutas Impactor at 9 L/min
Personal Environment Monitor (PEM) at 10 L/min
Low Volume PUF tube at 5 L/min
Long run times with 37 mm 0.8 µm MCE filter (up to 32 hours at 5 L/min, up to 20 hours at 8 L/min)
Bioaerosols using VersaTrap Spore Cassette
Nanoparticles with 37 mm MCE filter at 7 L/min
Respirable silica and other compounds with low target concentrations with 8L/min PPI

Specifications

Flow System	Flow range: 5,000 to 15,000 ml/min Constant flow compensation provides constant flow within ±5% for accurate air volume Built-in replaceable particulate trap to prevent contamination of sample Flow fault icon appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Power Supply	Rechargeable Li-Ion battery pack provides 24+ hours minimum run time at 5000 ml/min (depending on media used) Low battery indication on LCD Charging time: 15 hours
Display	Displays flow rate, volume, temperature, atmospheric pressure, date and time, run time and pump status Continuously displays volume, pump and battery status
User Adjustable Values	Sample run time, calibration, clock display, flow rate, time of day, delayed start, temperature and atmospheric units
Operating Temperature	0 to 40°C (32 to 104°F)
Case	Anti-static thermoplastic case with protective rubber overmoulding and integral belt clip
Tubing Required	3/8" ID
Dimensions	20.0 x 10.0 x 7.0 cm (7.9 x 3.9 x 2.75")
Weight	1000 g (35.2 oz)

Leland Legacy Pump

Description	Part Number
Leland Legacy Pump with Li-Ion battery pack, Start-up Guide and mini screwdriver set. Requires SKC Approved Single Charger (223-241)	100-3002

Leland Legacy Pump Kits

Description	Part Number
Single Pump Kit includes: Leland Legacy Pump, Li-Ion battery pack, Start-up Guide, mini screwdriver set, 1 m length Tygon tubing and Single Charger, in a carry case	100-3002K
Five Pump Kit includes: 5 Leland Legacy Pumps, 5 Li-Ion battery packs, Start-up Guides, mini screwdriver sets, 5 x 1 m lengths of Tygon tubing, 5 Single Chargers, in a carry case	100-3002K5

Leland Legacy Pump Accessories

Description	Part Number
Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand	223-241
chek-mate flowmeter, 5.0-30.0 l/min (recommended) (Other Calibrators available , see Calibration)	375-50300
Pulsation Dampener, for use with chek-mate 375-50300	375-150
Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 52dBA	224-89
Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-912
Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm).	224-905
Waist belt, extends up to 122 cm (48 inches).	224-12
Replacement Li-Ion Battery Pack	P75692C
DataTrac PC Software & Interface Kit for Leland Legacy	877-92K
CalChek Communicator Cable, for use with chek-mate (375-50300)	375-200
CalChek Communication Cable, for use with a Defender Calibrator	210-502
