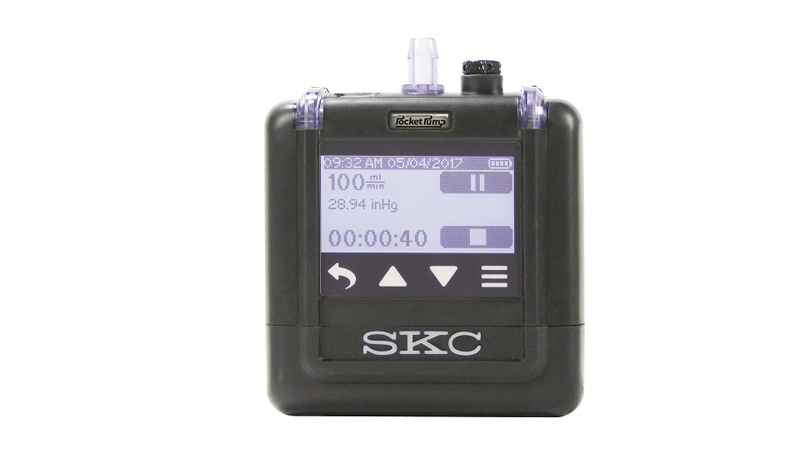

The SKC Pocket Pump TOUCH is a compact personal sample pump, ideal for low flow air sampling. The Pocket Pump TOUCH features touch screen operation and it is also certified for Intrinsic Safety.

Intuitive touch screen for easy navigation and programming
Compact, lightweight design
Flow range, 20 to 500 ml/min, ideal for vapour sampling
Bluetooth communication with PC/Laptop and DataTrac® Pro software
SmartWave App - Set, operate and monitor the Pocket Pump TOUCH from your mobile
Powerful Li-Ion battery for long run times, over 20 hours at 500 ml/min
Large, high contrast backlit LCD
Constant Flow and Constant Pressure modes
Rubber case overmoulding provides quiet operation, a non-slip grip and impact protection
Built-in sampling data storage
Optional quick-connect adaptor for secure bag sampling
The Pocket Pump TOUCH is also available in vapour/gas kits.
Flexible charging options:

Specifications

Flow System		Pump can be switched between constant flow or constant pressure as required Flow range in Constant Flow mode: 20 to 500 ml/min Compensation in Constant Flow Range: 20 to 500 ml/min up to 20 inches water pressure Pressure Range in Constant Pressure Mode: 1 to 20 inches water Corrects for changes in back pressure, temperature and atmospheric pressure Flow fault icon appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Power Supply		Removable, rechargeable Li-Ion battery pack provides 20+ hours minimum run time at 500 ml/min and up to 20 inches water back pressure Charging Time: ≤ 10 hours (≤ 4.5 hours to 80% capacity), depending on battery capacity and level of discharge Extended run times available with charger Low battery indication on LCD
Display		High contrast backlit LCD displays time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time and elapsed run time Capacitive touch screen display with auto-dim and locking options
Programmable		Using the optional DataTrac® Pro PC software and USB Bluetooth Adaptor, the pump run time data and history can be downloaded, as well as sampling sequences set up including delayed start, timed stop and intermittent sampling, all at different flow rates Using the Smartwave app the pump can be set up and monitored
Storage		Approx. Capacity: 1 week at 1 minute average, 1 month at 5 minute average
Certifications		Intrinsic safety (SKC Part No. 220-1000TC operated with SKC Battery Pack Part No. P76303) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, Group IIC T4; Exia -20°C ≤ Ta ≤ 45°C Ex II 1G Exia IIC T4 Ga IECEx UL 16.0113 DEMKO 16ATEX 1600 CE and UKCA Compliant RoHS compliant
Operating Temperature		Operating: 0 to 45°C (32 to 113°F) Charging: 0 to 45°C (32 to 113°F) Storage: -20 to 45°C (-4 to 113°F)
Case		IP 64 rated Durable polycarbonate case Rubberised anti-static overmoulding Large belt clip
Tubing Required		1/4" ID
Dimensions		8.1 x 9.7 x 3.8 cm (3.2 x 3.8 x 1.5")
Weight		235 g (8.3 oz)

Pocket Pump Touch

Description	Part Number
Pocket Pump TOUCH Pump with Li-Ion battery pack, Start-up Guide and mini screwdriver kit Requires SKC approved charger	220-1000TC

Pocket Pump Touch Kits

Description	Part Number
Pocket Pump TOUCH Single Pump Vapour Sampling Kit includes: Pocket Pump TOUCH pump with Li-Ion battery pack, single charger with power supply, USB magnetic charger cable, mini screwdriver kit, non-adjustable low flow single tube holder with attached tubing and Type A tube cover, tube breaker, Step-by-Step Guide and Start-up Guide in a durable carry case	220-1000TCKV
Pocket Pump TOUCH 5-Pump Vapour Sampling Kit includes: 5 Pocket Pump TOUCH pumps with Li-Ion battery packs, 5 way USB Hub with power supply, 5 x USB magnetic charger cables, 5 x mini screwdriver kit, 5 x non-adjustable low flow single tube holders with attached tubing and Type A tube cover, tube breaker, and 3 Step-by-Step Guides and Start-up Guides in a durable carry case	220-1000TCK5V

Pocket Pump Touch Accessories

Description	Part Number
Single Charger with power cable and USB magnetic single charger cable	220-300A
5 port USB Hub with power cable, accommodates up to 5 single chargers. Requires 1 x USB magnetic charger cable P75739 for each Pocket Pump TOUCH.	220-400
USB to Pocket Pump TOUCH - magnetic charger cable	P75739
chek-mate flowmeter, 20-500 ml/min (recommended) (Other Calibrators available , see Calibration)	375-00205
Quick-connect Bag Sampling Adaptor, installs on pump exhaust port. Holds rigid PTFE 1/4 in OD tubing securely for bag sampling. Simply press to release tubing.	220-200
USB Bluetooth® Adaptor (required for free software download and use of DataTrac Pro® PC software for Pocket Pump TOUCH*)	877-94
Single pump carry case with foam cutouts for charger and accessories, and useful pockets for manual, tubing, etc	222-98
Five pump carry case with foam cutouts for charger and accessories, and useful pockets for manual, tubing, etc	222-93
Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-901
Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle	224-915
Replacement Li-Ion Battery Pack	P76303

SmartWave App

What can the SKC SmartWave App do for me?

- Check in-range AirChek® Connect and Pocket Pump TOUCH status
- Monitor run time parameters such as run time, flow rate/pressure, fault, inlet pressure, and atmospheric temperature and pressure
- Select constant flow or constant pressure mode
- Set flow rate or pressure and operate sample runs
- Spot pump fault status
- Select display units and name pumps
- Use with the pump’s Secure Lock feature enabled to prevent unauthorized access to pump
