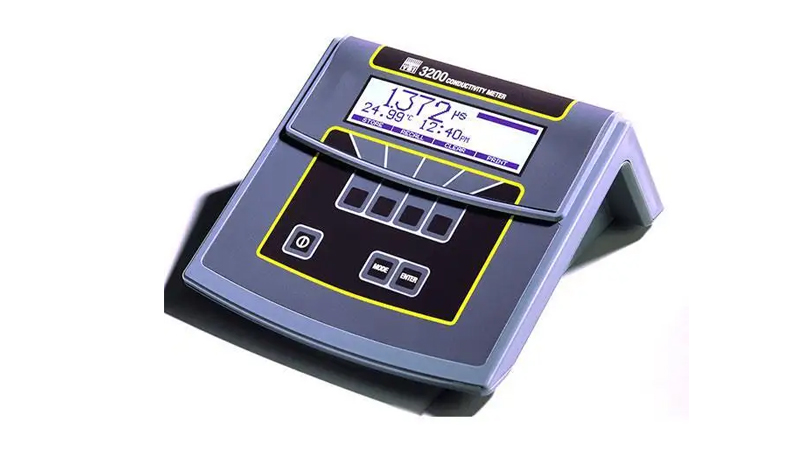

The YSI 3200 is an innovative instrument that offers unmatched accuracy for ultrapure water analysis, multipoint calibration, and a high/low alarm for process applications.

Instrument Only. Cables, probes/sensors, and accessories sold separately.

Overview

Measurements include conductivity, resistivity, salinity, total dissolved solids and temperature.

With YSI's exclusive accurate Resistance Ratio TechnologyTM (RRT), the 3200 continually compares the resistance of the sample to a calibrated resistor in the circuit.

Ensure the most accurate measurements with NIST-traceable conductivity cells with built-in temperature sensors and exceed USP24 specifications.

To ensure even greater accuracy, utilize the YSI conductivity calibration solutions.

Features:

Highly accurate Resistance Ratio Technology
Multipoint calibration
High and low alarms
Linear and nonlinear temperature compensation options
Data storage and logging

Choose between 115V or 230V (Included). YSI 3232 cell adaptor required if using 3400 series conductivity cells with the 3100 or 3200.

Specifications

Benchtop	Yes
Certification	CE, UL, CSA
Connector	7-pin Mini Din
GLP Compliance	Yes
Graphic Display	Graphic Display
Measurement Range	Conductance- 0 - 0.9999 µS , Resistance- 0 - 9.999 ?, Salinity-0-80 ppt (NaCl), TDS-0-19,999 mg/L, Temperature--5 to +100°C
Multiparameter	Yes
Parameters Measured	Conductivity, Resistivity, Salinity, TDS (total dissolved solids) and Temperature
Power	AC, 115V, 220V
Unit of Measure	TDS-0- mg/L, Salinity-ppt, Conductance- µS, Resistance- ?, Temperature-°C
User Calibratable	Yes
Warranty	2-year instrument
Waterproof	Designed exclusively for indoor use and are NOT waterproof.
